INLINE FABRICATION"THE RAILPLATE" MOUNTING/EMBEDDED RAILS/

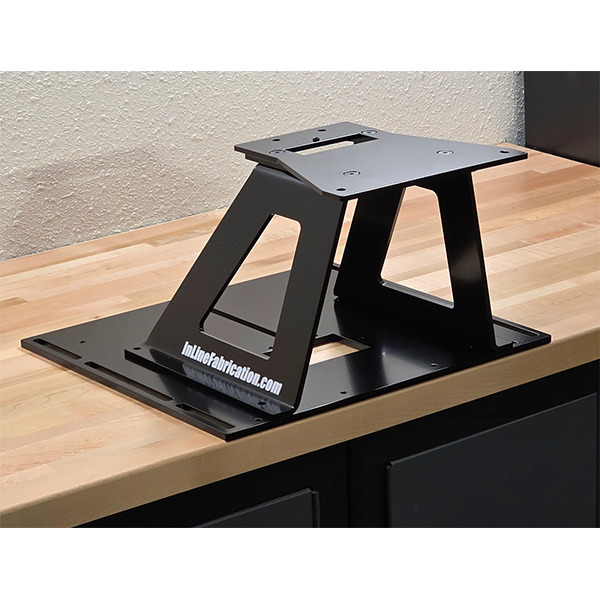

The "Railplate" has slotted grooves that allows it to attach to benchtops that have T tracks/rails installed into them.  The slots are long enough to accommodate the majority of track spacing common to reloading benches. (See specs below)  It is threaded for and will accept 4 different height InLine Fab mounts. (Not tapped for the Super six mount at this time.)  13lbs of thick steel supporting your presses!

• The Flush mount QC baseplate
• 4" Micro QC Ultramounts
• 7.5" Junior QC Ultramounts
• 9 3/4" tall quick change Ultramounts
• Also dedicated Ultramounts

Super versatile and can be removed quickly from the tracks if desired.

Note: No "T" tracks or rails in your bench but want the versatility?  Just bolt the Railplate straight down to your benchtop with 5/16 lag screws or bolts.

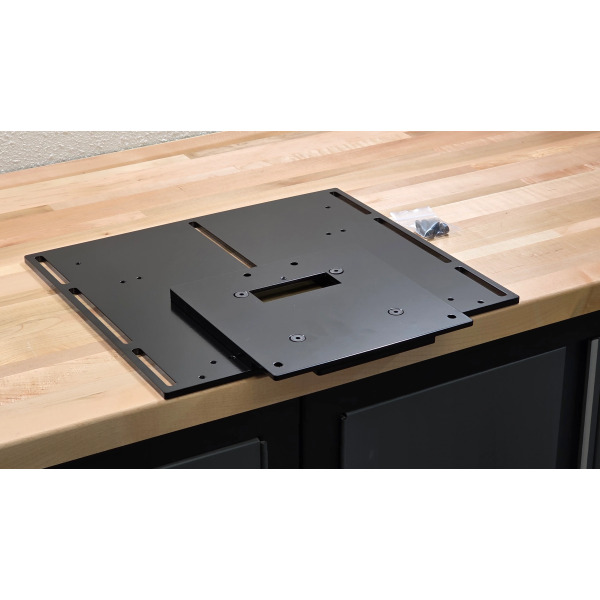

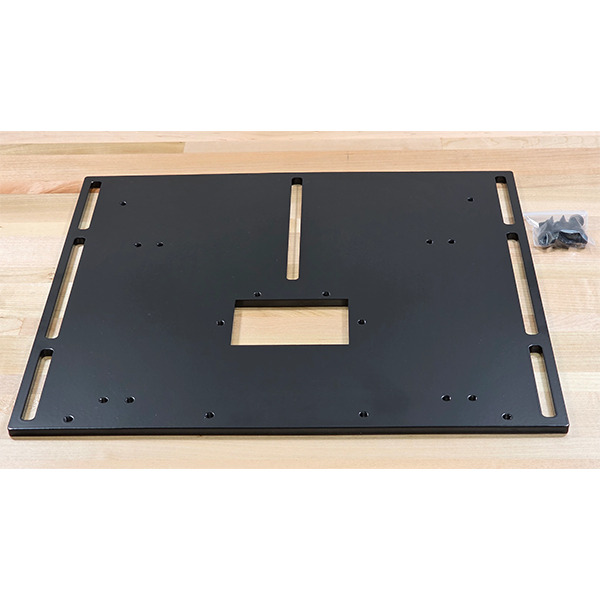

The Railplate comes with hardware to attach the ultramounts from the top, so no need to remove the Railplate to install/swap mounts.   It is 1/4" thick laser cut steel and stupid strong.

Note2: Does not work with 4" Micro r 7.5" JR Dillon 1050, 1100 mounts

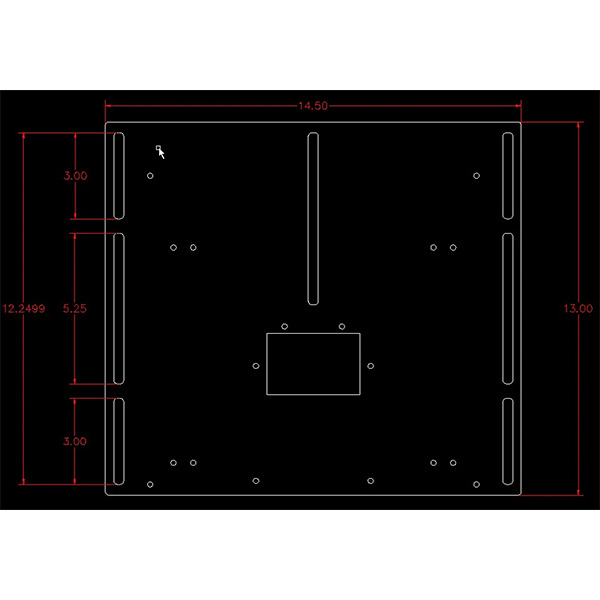

Measures 13" deep by 14 1/2" wide

Will accept 1/4" or 5/16 T track hold down hardware.
